35UBLF
35mm² Cable, No Insulation

Download Data Sheet

Full Description

Product Information:

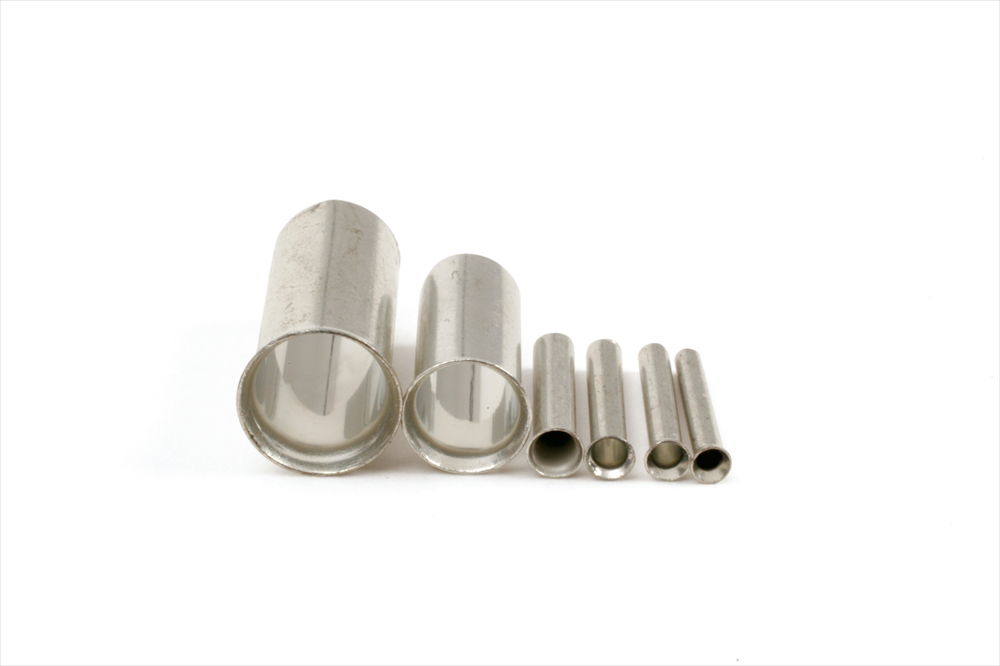

Uninsulated bootlaces manufactured from tin plated electrolytic copper designed to reinforce fine wire strands when terminating cables into connectors.

Also suitable for tri rated cables in accordance with DIN46288 Part 4 .


Specification:

Cable Size: 35mm²

Temperature Rating: Up to +125°C.

Designed for use with flexible cables.


Suitable crimp tools can be found in the Related Products section below

Click Here for Catalogue Details

Page Title

35mm² Cable, No Insulation

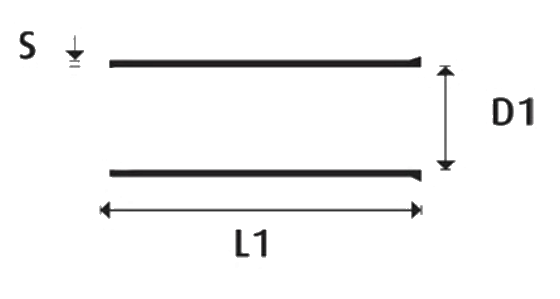

Overall Length (L1): 18mm

Pin Diameter (D1): 8.3mm

Pin Thickness (S): 0.2mm

Tin plated electrolytic Copper.
